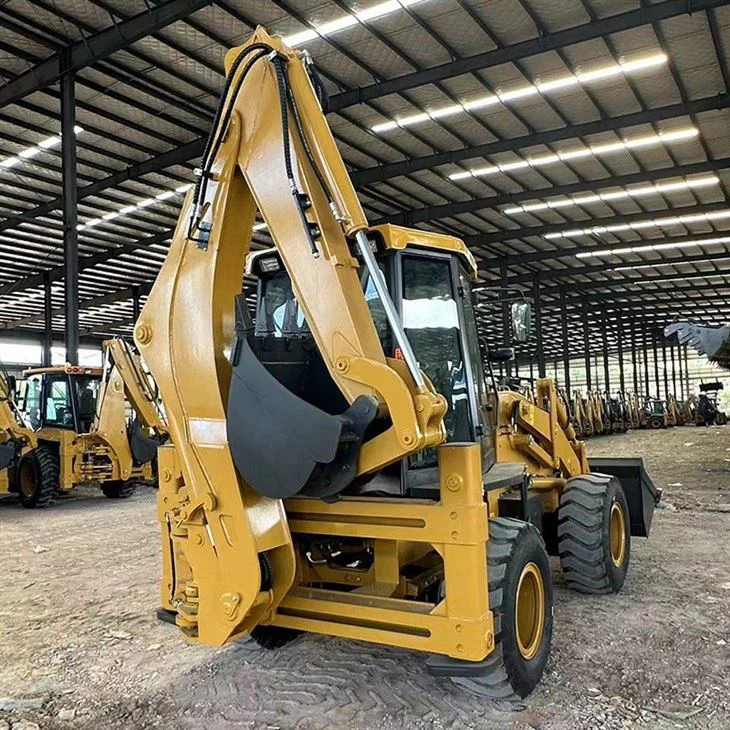

WZ30-25 Backhoe Excavator
WZ30-25 backhoe excavator yog ib qho ntawm ntau yam khoom siv hauv ntiaj teb txav thiab nquag siv hauv ntau hom kev ua liaj ua teb, kev tsim kho, thiab kev siv kev lag luam.Qhov zoo tshaj plaws ntawm WZ30-25 backhoe excavator yog tias tsuas yog ib tus tib neeg tuaj yeem ua tiav ntau yam dej num xws li khawb, thauj thiab thauj khoom.Qhov zoo tshaj plaws ntawm WZ30-25 backhoe excavator yog tias tsuas yog ib tus tib neeg tuaj yeem ua tiav ntau yam dej num xws li khawb, thauj thiab thauj. hom backhoe yog mounted rau thav duab rails thiab stabilizers uas tso cai rau cov neeg ua hauj lwm hloov chaw ua hauj lwm los yog cov ntaub ntawv los ntawm ib sab ntawm lub loader mus rau lwm yam, zoo heev txuag lub sij hawm thiab kuj txhim kho efficiency.Lwm yam zoo ntawm cov hom no yog hais tias nws muaj peev xwm zoo sib npaug ntawm precision thiab productivity nyob rau hauv nqaim corridors los yog ua hauj lwm tej yam kev mob uas lub tshuab yog positioned nyob ze rau lub tsev los yog lwm yam khoom siv im loading.
| Tag nrho qhov ntev | Qhov hnyav ua haujlwm | 7 600 KG |
| Zuag qhia tag nrho (L × W × H) | 5654 × 2365 × 3764mm | |
| Log puag | 24 15mm | |
| Log tread | 1 848mm | |
| Av Clearance | 300 hli | |
|
Kev ua tau zoo |
Loader thoob muaj peev xwm |
1.0m³ |
|
Loader breakout quab yuam |
47kn ua |
|
|
Loader lifting muaj peev xwm |
2500 KG |
|
|
Loader dumping qhov siab |
2 780mm |
|
|
Loader dumping ncav cuag |
11 12mm |
|
|
Loader khawb qhov tob |
52mm ua |
|
|
Backhoe thoob muaj peev xwm |
0.3m³ |
|
|
Backhoe thoob khawb lub zog |
50 KN |
|
|
Backhoe viav vias kaum sab xis |
180 degree |
|
|
Backhoe dumping qhov siab |
3 820mm |
|
|
Backhoe max khawb qhov tob |
4 060mm |
|
|
Max. traction zog |
52kn ua |
|
|
Cav |
Qauv |
Yuchai YC4A105Z-T20 |
|
Hom |
Turbocharging plaub-stroke |
|
|
Lub tog raj kheej- puab txoj kab uas hla * stroke |
4-108×132 |
|
|
Rated zog |
75KW/100HP TSI |
|
|
Rated ceev |
2200 r / min |
|
|
Min. Roj noj |
230 g / kWh |
|
|
Max.torque |
400N.m |
|
|
Kev khiav tawm |
4.8L |
|
| Steering system |
Hom | Hydraulic Steering |
| Diverter qauv | ZPO 5-250 | |
| Pump xa | 63ml / r | |
| Lub kaum sab xis | ± 36 degree | |
| Min. tig radius | 5 590mm | |
| Tsav qag |
Qauv |
ZL 28 |
| Chaw tsim tshuaj paus | Tuam Tshoj qag | |
| Max. load ntawm pem hauv ntej qag | 12.3 ton | |
| Max. load ntawm rear qag | 12.3 ton | |
| Kev sib kis |
Gearbox | Mechanically ua haujlwm Hydraulic Synchrinized ua haujlwm |
| Qauv | ZL15 | |
| Gears | 2 rau pem hauv ntej thiab 2 rov qab iav | |
| Hydraulic torque converter | lwj 280 | |
| Inlet siab | 0.4-0.65 Mpa | |
| Qhov hluav taws xob siab | 1.5-1.8Mpa | |
| Txias hom | roj- cua txias presssure circulation | |
| Pump xa | 40 ml / r | |
|
Lub log |
Pem hauv ntej log loj |
16/70-20 |
|
rear log loj |
16/70-20 |
|
|
Pem hauv ntej lub log siab |
0.35 Mpa |
|
|
Lub log tsheb siab |
0.35 Mpa |
|
|
Kev ceev ceev |
22 Km/h |
|
| Nres system |
Kev pabcuam nres | Huab cua tshaj roj caliper, sab nraud, tus kheej -kev tswj hwm, tus kheej- sib npaug |
| Nres nres | Kev ceev nres | |
| Qhov system siab |
Loading hydraulic system | 19mpa ua |
| Kev khawb hydraulic system | 19mpa ua | |
|
Steering hydraulic system |
14 Mpa |
