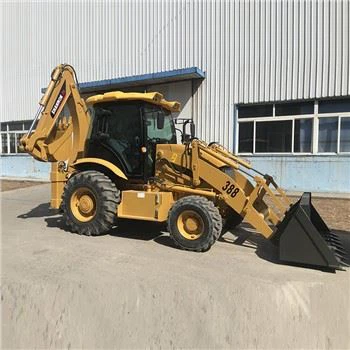

WZ30-25 Backhoe Loader
Lub WZ 30-25 backhoe loader uas tsim los ntawm peb lub Hoobkas yog tsim los rau kev tsim kho me me thiab kev ua haujlwm ntawm excavation.Nws kuj tuaj yeem siv rau hauv kev ua liaj ua teb lossis lwm yam hauv nroog engineering.The backhoe loader yog ib qho khoom siv engineering thiab excavation tsheb uas muaj tsheb laij teb, pem hauv ntej shovel thiab thoob thiab ib lub backhoe me me nyob rau hauv lub me me backhoe mus rau lub me me 0-2 version. Nws yog qhov yooj yim heev, kev ua haujlwm siab thiab qhov tseem ceeb tshaj, kev txuag nyiaj.Koj tuaj yeem nqa lossis thauj khoom los ntawm kev siv lub thoob pem hauv ntej thiab tib lub sijhawm khawb lub ntiaj teb los ntawm kev siv lub thoob tom qab.Cov khoom no tau txais kev pabcuam hauv nruab nrab nrog me me tig vojvoog thiab kev ua haujlwm yooj yim.Our WZ30-25 backhoe loader yog saws 16/70-20 lub log tsheb uas muaj npe nrov hauv Suav teb.
| Tag nrho qhov ntev | Qhov hnyav ua haujlwm | 7 600 KG |
| Zuag qhia tag nrho (L × W × H) | 5654 × 2365 × 3764mm | |
| Log puag | 24 15mm | |
| Log tread | 1 848mm | |
| Av Clearance | 300 hli | |
Kev ua tau zoo | Loader thoob muaj peev xwm | 1.0m³ |
Loader breakout quab yuam | 47kn ua | |
Loader lifting muaj peev xwm | 2500 KG | |
Loader dumping qhov siab | 2 780mm | |
Loader dumping ncav cuag | 11 12mm | |
Loader khawb qhov tob | 52mm ua | |
Backhoe thoob muaj peev xwm | 0.3m³ | |
Backhoe thoob khawb lub zog | 50 KN | |
Backhoe viav vias kaum sab xis | 180 degree | |
Backhoe dumping qhov siab | 3 820mm | |
Backhoe max khawb qhov tob | 4 060mm | |
Max. traction zog | 52kn ua | |
Cav | Qauv | Yuchai YC4A105Z-T20 |
Hom | Turbocharging plaub-stroke | |
Lub tog raj kheej- puab txoj kab uas hla * stroke | 4-108×132 | |
Rated zog | 75KW/100HP TSI | |
Rated ceev | 2200 r / min | |
Min. Roj noj | 230 g / kWh | |
Max.torque | 400N.m | |
Kev khiav tawm | 4.8L | |
| Steering system | Hom | Hydraulic Steering |
| Diverter qauv | TZB 5-250 | |
| Pump xa | 63ml / r | |
| Lub kaum sab xis | ± 36 degree | |
| Min. tig radius | 5 590mm | |
| Tsav qag | Qauv | ZL 28 |
| Chaw tsim tshuaj paus | Tuam Tshoj qag | |
| Max. load ntawm pem hauv ntej qag | 12.3 ton | |
| Max. load ntawm rear qag | 12.3 ton | |
| Kev sib kis | Gearbox | Mechanically ua haujlwm Hydraulic Synchrinized ua haujlwm |
| Qauv | ZL15 | |
| Gears | 2 rau pem hauv ntej thiab 2 rov qab iav | |
| Hydraulic torque converter | lwj 280 | |
| Inlet siab | 0.4-0.65 Mpa | |
| Qhov hluav taws xob siab | 1.5-1.8Mpa | |
| Txias hom | roj- cua txias presssure circulation | |
| Pump xa | 40 ml / r | |
Lub log | Pem hauv ntej log loj | 16/70-20 |
rear log loj | 16/70-20 | |
Pem hauv ntej lub log siab | 0.35 Mpa | |
Lub log tsheb siab | 0.35 Mpa | |
Kev ceev ceev | 22 Km/h | |
| Nres system | Kev pabcuam nres | Huab cua tshaj roj caliper, sab nraud, tus kheej -kev tswj hwm, tus kheej- sib npaug |
| Nres nres | Kev ceev nres | |
| Qhov system siab | Loading hydraulic system | 19mpa ua |
| Kev khawb hydraulic system | 19mpa ua | |
Steering hydraulic system | 14 Mpa |
