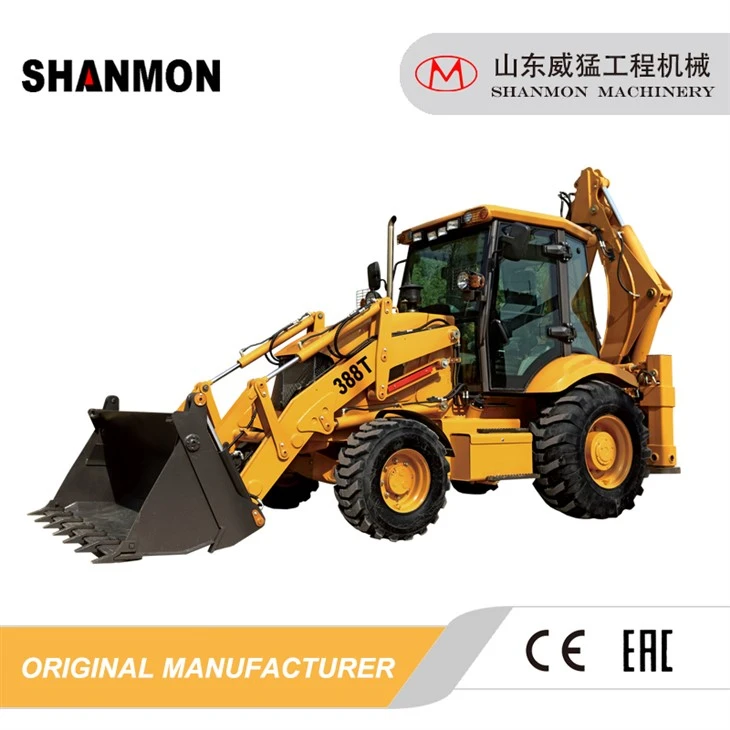

388T Backhoe Loader
Lub 388T backhoe loader yog ib qho kev txhim kho zoo heev ntawm shanmon 388 backhoe loader. Lub tshuab no siv ntau yam khoom siv thoob ntiaj teb, suav nrog Italian Carraro qag, Carraro kis lub thawv, Weichai lossis Cummins diesel cav. Piv nrog rau 388, Carraro axles txais kev tsav tsheb ntub, ua rau kev tsav tsheb ntau dua thiab ua haujlwm yooj yim dua. Lub shanmon 388T muaj plaub lub zog rau pem hauv ntej thiab plaub lub zog rov qab, thiab kev mus ncig ceev yog 38 Km / h. Nrog muti- lub hom phiaj thoob thiab cov ntaub ntawv sib txawv, 388T yuav yog lub hauv paus ntawm kev tsim kho kev lag luam. Nov yog qhov specification:
| Tag nrho qhov ntev | Qhov hnyav ua haujlwm | 8 200 KG |
| Zuag qhia tag nrho (L × W × H) | 6050 × 2465 × 3100 hli | |
| Log puag | 22 80mm | |
| Log tread | 1 785mm | |
| Av Clearance | 300 hli | |
|
Kev ua tau zoo |
Loader thoob muaj peev xwm |
1.0m³ |
|
Loader breakout quab yuam |
47kn ua |
|
|
Loader lifting muaj peev xwm |
2500 KG |
|
|
Loader dumping qhov siab |
2 760mm |
|
|
Loader dumping ncav cuag |
900 hli |
|
|
Loader khawb qhov tob |
52mm ua |
|
|
Backhoe thoob muaj peev xwm |
0.3m³ |
|
|
Backhoe thoob khawb lub zog |
50 KN |
|
|
Backhoe viav vias kaum sab xis |
180 degree |
|
|
Backhoe dumping qhov siab |
3 795mm |
|
|
Backhoe max khawb qhov tob |
4 085mm |
|
|
Max. traction zog |
60 KN |
|
|
Cav |
Qauv |
Weichai WP4G95E221 |
|
Hom |
Turbocharging plaub-stroke |
|
|
Lub tog raj kheej- puab txoj kab uas hla * stroke |
4-105×130 |
|
|
Rated zog |
70KW/95HP TSI |
|
|
Rated ceev |
2200 r / min |
|
|
Min. Roj noj |
230 g / kWh |
|
|
Max.torque |
380N.m |
|
|
Kev khiav tawm |
4.5L |
|
| Steering system | Hom | Hydraulic Steering |
| Diverter qauv | ZPO 5-250 | |
| Pump xa | 63ml / r | |
| Lub kaum sab xis | ± 36 degree | |
| Min. tig radius | 6 581mm | |
| Tsav qag | Qauv | 26.2-1920/28.43M-1654 |
| Chaw tsim tshuaj paus | Ltalis carraro | |
| Max. load ntawm pem hauv ntej qag | 22,5 t | |
| Max. load ntawm rear qag | 18,75 t | |
| Kev sib kis | Gearbox | Countershaft powershift |
| Qauv | TLB1-4WD | |
| Gears | 4 rau pem hauv ntej thiab 4 rov qab iav | |
| Hydraulic torque converter | carraro | |
| Inlet siab | - | |
| Qhov hluav taws xob siab | 1.3-1.55Mpa | |
| Txias hom | roj- cua txias presssure circulation | |
| Pump xa | 40 ml / r | |
|
Lub log |
Pem hauv ntej log loj |
14-17.5 |
|
rear log loj |
19.5L-24 |
|
|
Pem hauv ntej lub log siab |
0.4Mpa |
|
|
Lub log tsheb siab |
0.35 Mpa |
|
|
Kev ceev ceev |
38 Km/h |
|
| Nres system | Kev pabcuam nres | Kev ntub dej hauv tus kheej - kev tswj hwm, tus kheej - sib npaug |
| Nres nres | Kev ceev nres | |
| Qhov system siab | Loading hydraulic system | 20 Mpa |
| Kev khawb hydraulic system | 20 Mpa | |
|
Steering hydraulic system |
14 Mpa |
