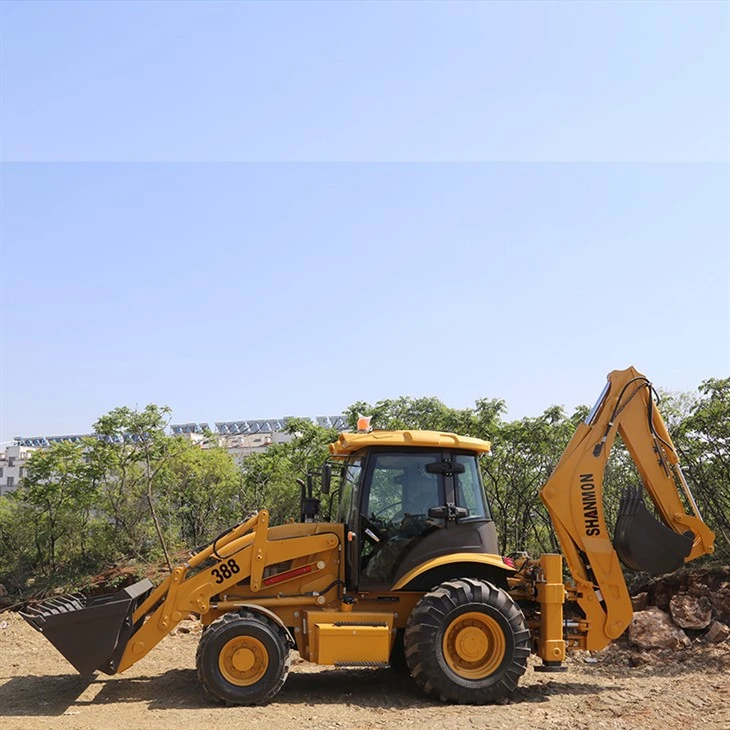

Tsheb laij teb Backhoe
Lub tsheb laij teb backhoe yog tsim los rau kev ua liaj ua teb, hav zoov, ib txwm ua haujlwm, kev tsim kho vaj tse thiab pej xeem cov chaw tsim kho.it yog ib qho kev tsim vaj tsev thiab kev khawb av uas muaj lub tsheb laij teb, pem hauv ntej shovel thiab thoob thiab ib lub me me backhoe nyob rau tom qab kawg.Vim qhov me me thiab ntau yam, peb lub tsheb laij teb backhoe yog qhov yooj yim heev, siab efficiency} thiab lub sij hawm rov qab. thiab kis tau tus mob tsim los ntawm ib lub Hoobkas nyob rau hauv Shandong xeev, Shandong Yunyu Machinery CO., LTD uas muaj concentrated nyob rau hauv lub tsav axles rau xyoo lawm.Lub domestic axles thiab kis tau tus mob yog heev haum rau peb cov khoom.Lub tag nrho cov ncej ntawm tsheb laij teb backhoe yog ib qho tseem ceeb uas muab lub tshuab zoo stability thiab kuj ua rau nws tsim nyog rau excavation ua hauj lwm. Nov yog qhov specification:
| Tag nrho qhov ntev | Qhov hnyav ua haujlwm | 8 200 KG |
| Zuag qhia tag nrho (L × W × H) | 6050 × 2465 × 3100 hli | |
| Log puag | 22 80mm | |
| Log tread | 1 785mm | |
| Av Clearance | 300 hli | |
Kev ua tau zoo | Loader thoob muaj peev xwm | 1.0m³ |
Loader breakout quab yuam | 47kn ua | |
Loader lifting muaj peev xwm | 2500 KG | |
Loader dumping qhov siab | 2 760mm | |
Loader dumping ncav cuag | 900 hli | |
Loader khawb qhov tob | 52mm ua | |
Backhoe thoob muaj peev xwm | 0.3m³ | |
Backhoe thoob khawb lub zog | 50 KN | |
Backhoe viav vias kaum sab xis | 180 degree | |
Backhoe dumping qhov siab | 3 795mm | |
Backhoe max khawb qhov tob | 4 085mm | |
Max. traction zog | 60 KN | |
Cav | Qauv | Yuchai YC4A105Z-T20 |
Hom | Turbocharging plaub-stroke | |
Lub tog raj kheej- puab txoj kab uas hla * stroke | 4-108×132 | |
Rated zog | 75KW/100HP TSI | |
Rated ceev | 2200 r / min | |
Min. Roj noj | 230 g / kWh | |
Max.torque | 400N.m | |
Kev khiav tawm | 4.8L | |
| Steering system | Hom | Hydraulic Steering |
| Diverter qauv | TZB 5-250 | |
| Pump xa | 63ml / r | |
| Lub kaum sab xis | ± 36 degree | |
| Min. tig radius | 6 581mm | |
| Tsav qag | Qauv | wb 75d |
| Chaw tsim tshuaj paus | Tuam Tshoj qag | |
| Max. load ntawm pem hauv ntej qag | 22,5 t | |
| Max. load ntawm rear qag | 18,5 t | |
| Kev sib kis | Gearbox | Mechanically ua haujlwm Hydraulic Synchrinized ua haujlwm |
| Qauv | ZL15 | |
| Gears | 2 rau pem hauv ntej thiab 2 rov qab iav | |
| Hydraulic torque converter | lwj 290 | |
| Inlet siab | 0.4-0.65 Mpa | |
| Qhov hluav taws xob siab | 1.5-1.8Mpa | |
| Txias hom | roj- cua txias presssure circulation | |
| Pump xa | 40 ml / r | |
Lub log | Pem hauv ntej log loj | 14-17.5 |
rear log loj | 19.5L-24 | |
Pem hauv ntej lub log siab | 0.4Mpa | |
Lub log tsheb siab | 0.35 Mpa | |
Kev ceev ceev | 24 Km/h | |
| Nres system | Kev pabcuam nres | Huab cua tshaj roj caliper, sab nraud, tus kheej -kev tswj hwm, tus kheej- sib npaug |
| Nres nres | Kev ceev nres | |
| Qhov system siab | Loading hydraulic system | 19mpa ua |
| Kev khawb hydraulic system | 19mpa ua | |
Steering hydraulic system | 14 Mpa |
